/From Prototype To Production/
One Manufacturing Partner for Your Complete PCB And PCBA Build
PCB fabrication, component sourcing, SMT/THT assembly, cable harness and box build — all under one ISO 9001 / UL veried PCB manufacturer.
Send Gerber and BOM; one team handles engineering review, sourcing, assembly, test and shipping.
Why Engineering Buyers Choose PCBSAIL for PCB & PCBA Manufacturing.
It will create avoidable delays, extra costs, and quality risks if you manage PCB fabrication, component sourcing, assembly, and testing across multiple suppliers. We coordinates these manufacturing stages through one service, helping you simplify sourcing and move from prototype to production with greater control.
1. Fragmentation | The five-vendor trap
Rheinwerk Automation (Germany) used five suppliers for one project. On a 500-unit order, three MCUs were marked NRND, and a supplier delivered refurbished parts without approval. Functional yield fell to 61%, and production stopped for 11 days while suppliers blamed each other.
We reviews BOM risks before quoting, flags lifecycle issues, and recommends alternatives early.
One PO. One engineering contact. One traceable process from bare PCB to finished product.
2. Downtime | Missing parts and BOM errors
Medelia Systems (Netherlands) had an undersized footprint for a QFN-24 power IC. The error risked poor thermal-pad soldering and failures during burn-in.
We found the issue during DFM review, revised the footprint against the datasheet, and obtained customer approval before production. The first 200 units passed 48-hour burn-in.
We check BOM completeness, component lifecycle, and design risks before production starts.
3. Hidden Costs | Know the Full Price
Northbridge IoT (USA) accepted a quote 18% below market. But testing, stencil, engineering, and packaging costs were excluded. The final price was 34% higher, and a BGA batch failure led to a customer recall.
We provides itemized quotes for PCBs, components, assembly, testing, packaging, and freight. We flag missing items before production.
Clear costs. Fewer surprises. Better purchasing decisions.
4. Traceability | Support Beyond Delivery
Nordqvist Mobility (Sweden) needed traceability reports within four hours. Its previous supplier stored records across spreadsheets, and one failure analysis took three weeks.
We links serial numbers to material lots, process records, AOI images, and test data. A full report can now be provided in two hours.
DFM before production. Inspection and testing during assembly. Traceability after delivery. One connected process.
PCB and PCBA Services Under One Roof
From PCB fabrication and component sourcing to assembly, testing, and final product integration, you can choose the single services you need or combine them into one turnkey solution.

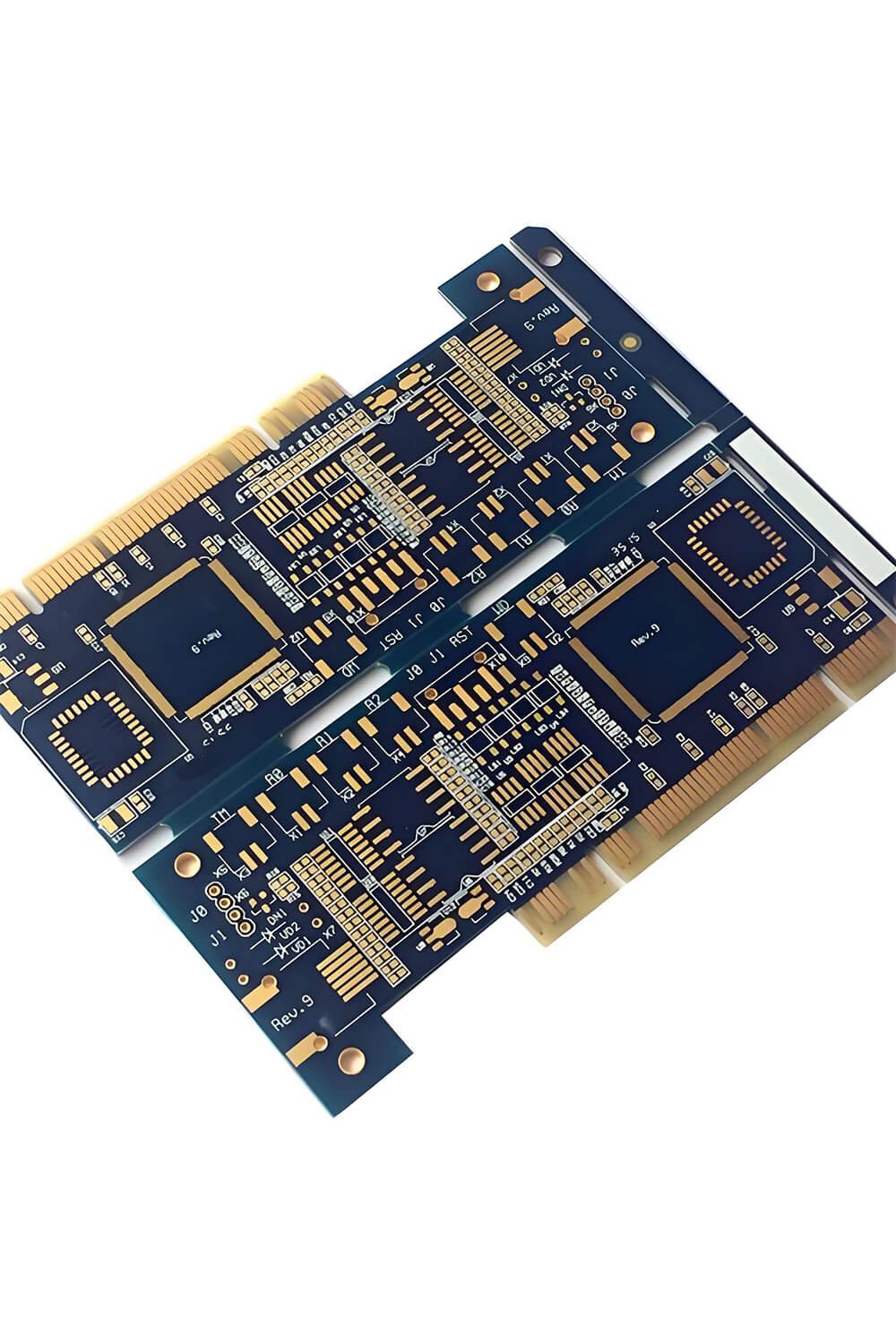

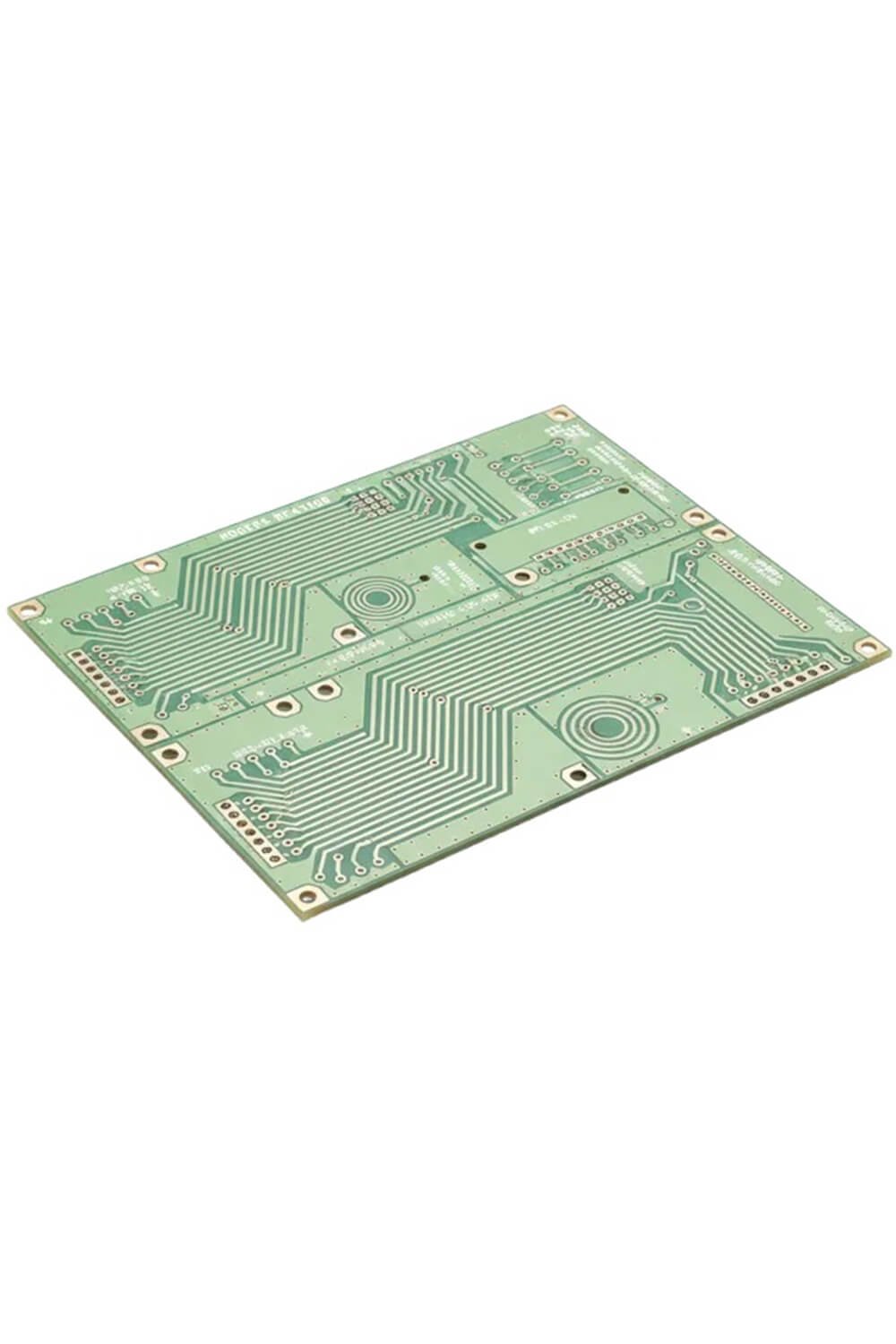

Feature PCB.
We offer a complete range of PCB Boards, supporting rapid prototyping and low-to-medium volume production. Our capabilities cover standard FR-4, high-frequency, metal core, flexible, and rigid-flex PCBs, designed to meet demanding performance and delivery requirements.

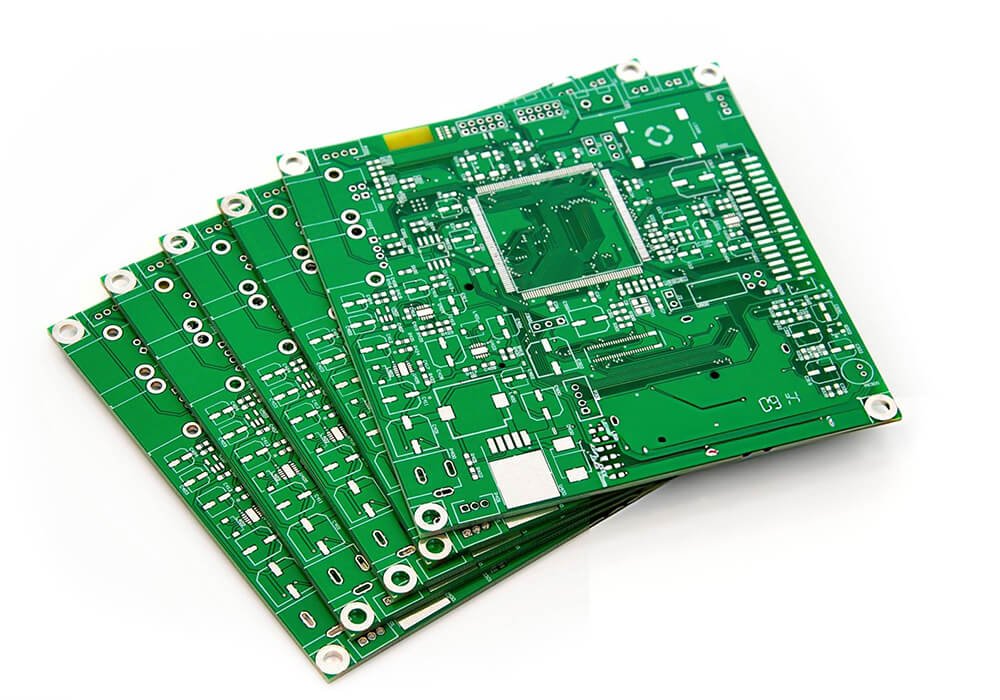

Rigid PCB
- Layer Count: 1–32 layers
- Materials: FR-4, High-Tg, halogen-free
- Board Thickness: 0.4–3.2 mm
- Copper Thickness: 0.5–6 oz

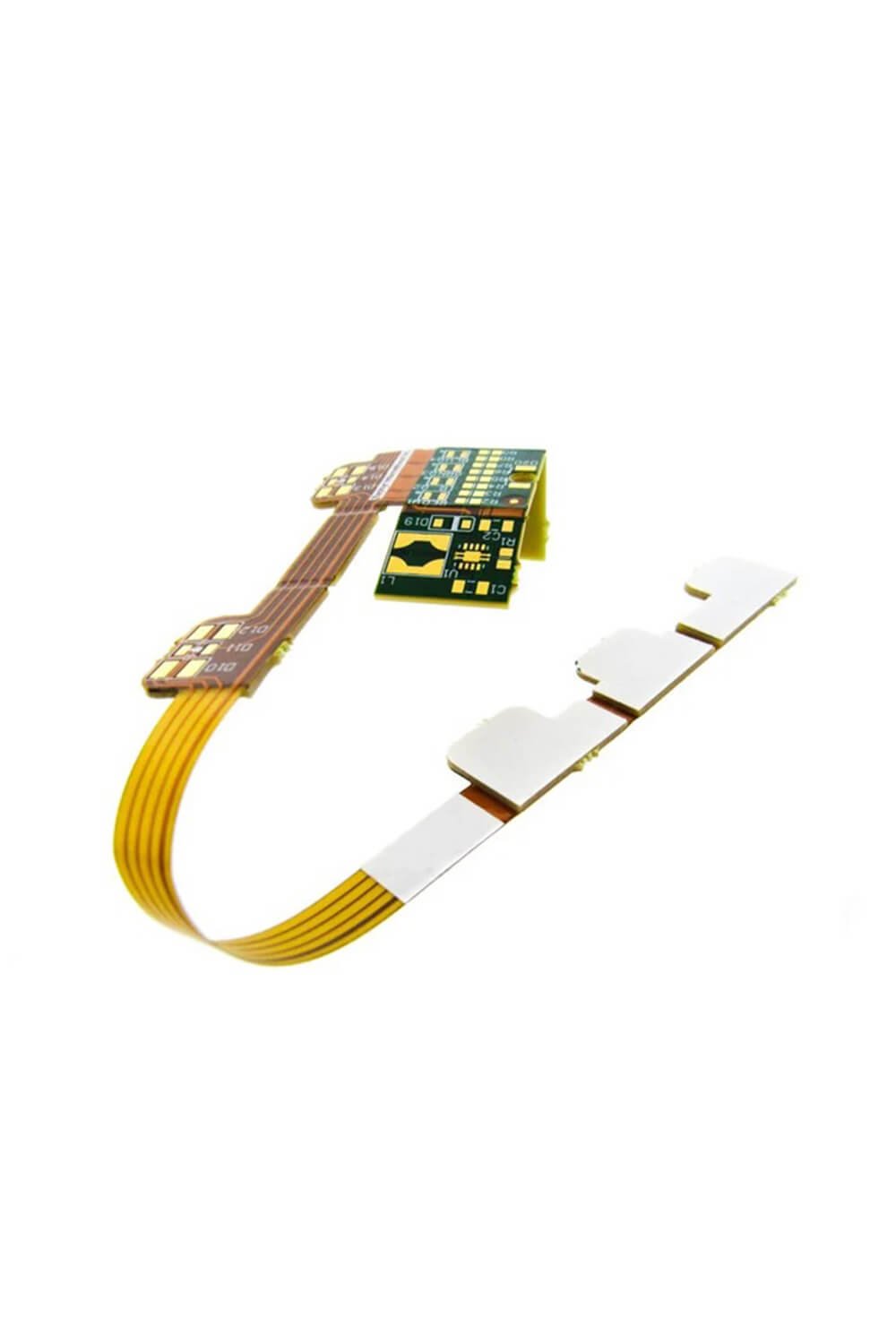

Flex PCB
- Layer Count: 1–6 Layers
- Materials: Polyimide (PI), PET, PEN, and LCP
- Board Thickness: 0.05–0.8 mm
- Copper Thickness: 0.5–3 oz
- Impedance Control: Standard ±5 Ω

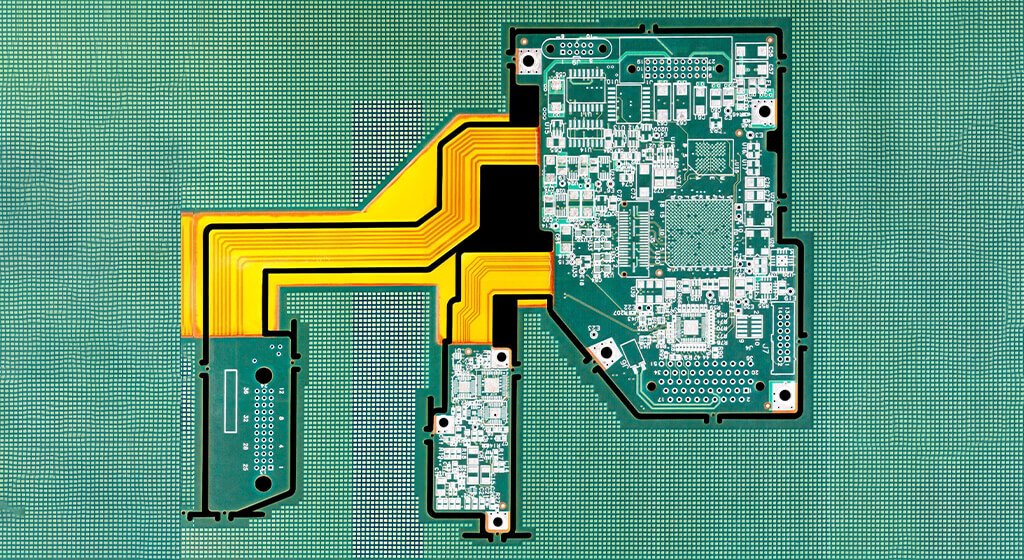

Rigid-Flex PCB
- Layer Count: Rigid: 1–16 Layers; Flex: 1-6 Layers
- Materials: FR-4, polyimide (PI), and high-performance laminates
- Support Complex Stack-ups
- Blind/buried Vias, Via-in-pad

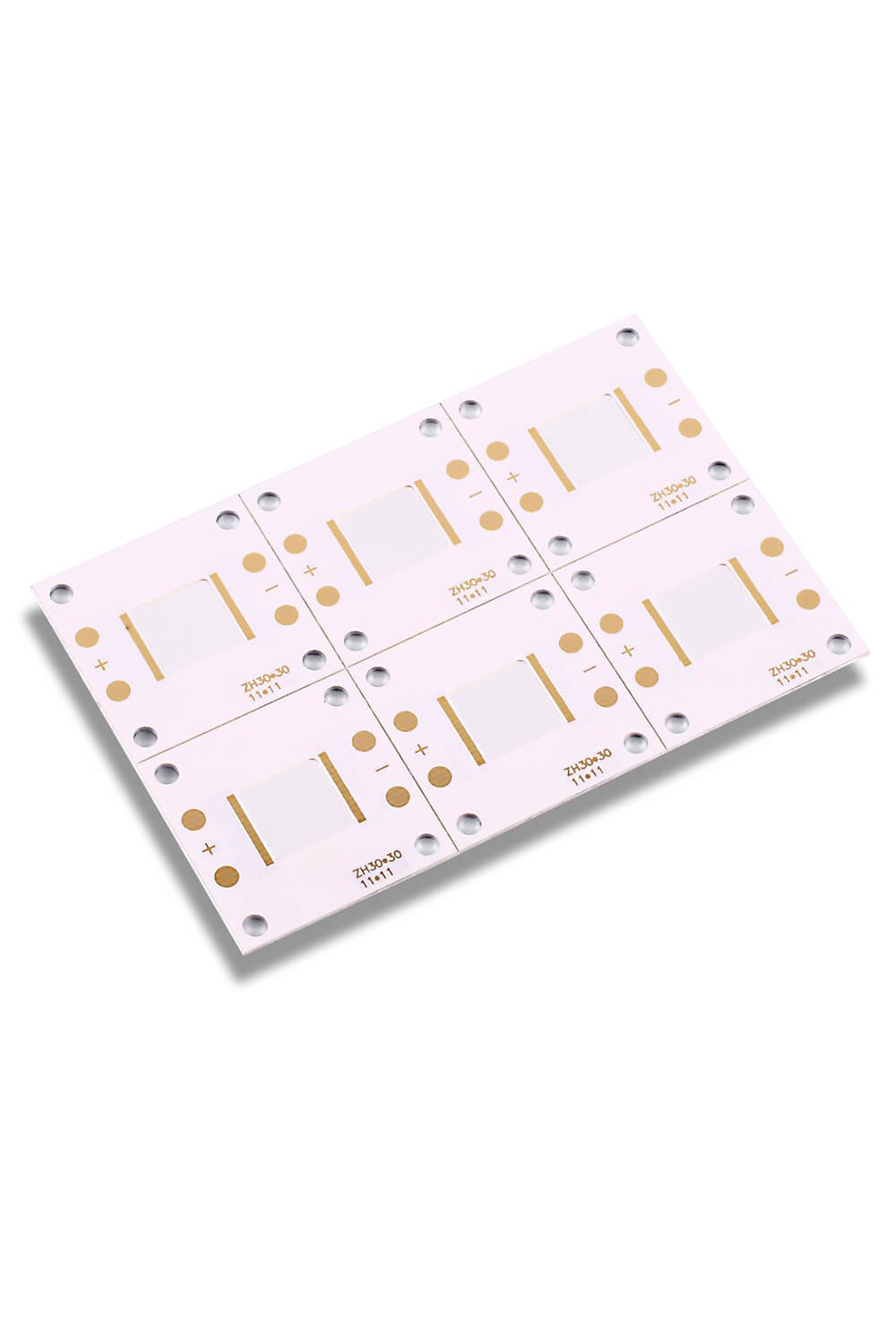

Metal Core PCB
- Layer Count: 1–6 Layers
- Metal Core Materials: Aluminum, Copper, Copper-Aluminum Composite, Stainless Steel, Iron
- Metal Core Thickness: 0.4 mm – 3.2 mm
- Board Thickness: 0.6 mm – 4.0 mm
- Copper Thickness: 0.33 oz – 10 oz
- Thermal Conductivity of Dielectric: 1.0 – 15 W/m·K
- Dielectric Thickness: 50 – 125 μm

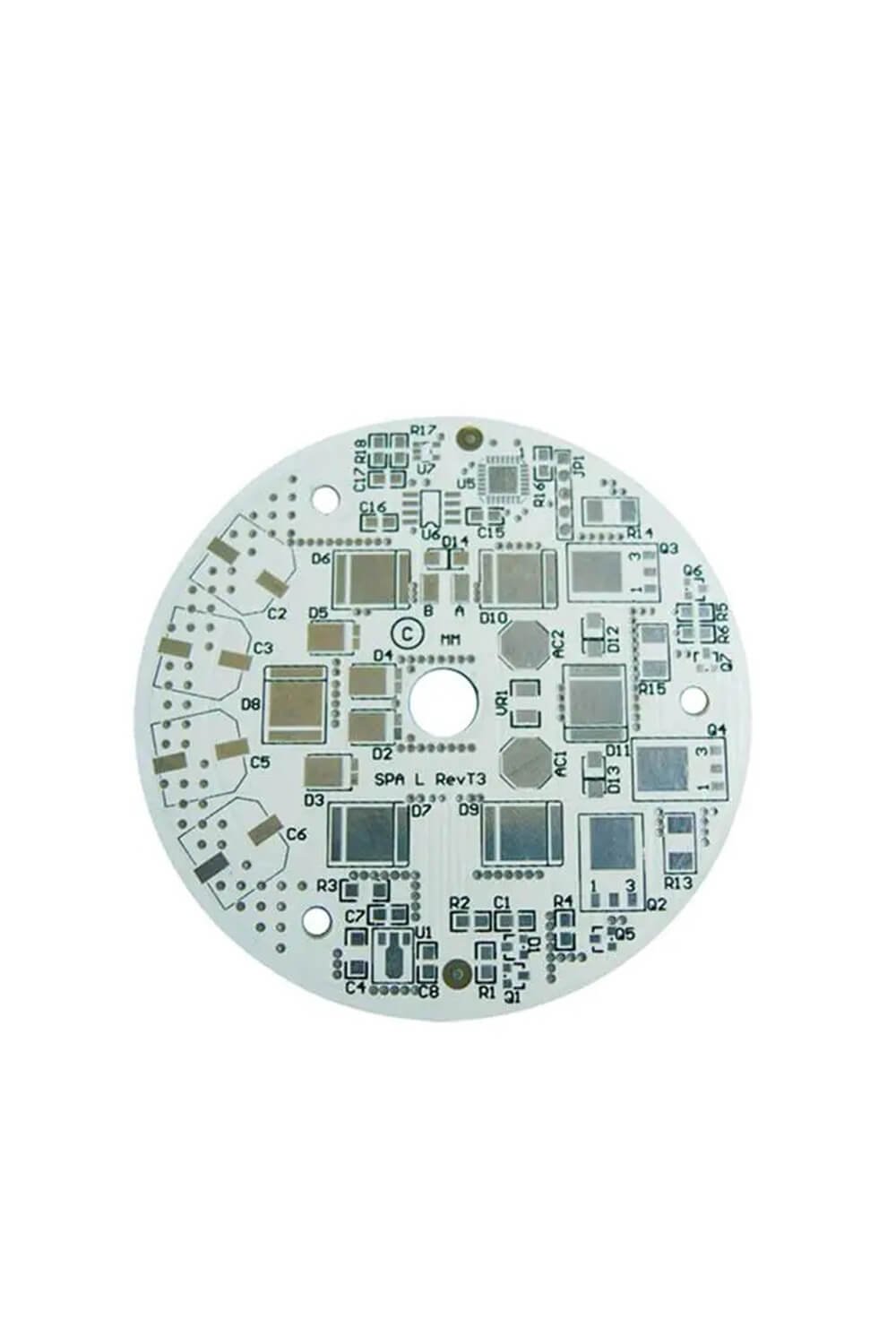

Aluminum PCB
- Copper Thickness: 0.5oz / 0.75oz / 1oz / 2oz
Board Thickness: 0.2 – 5.0mm - Thickness Tolerance (t ≥ 1.0mm): ±10%
- Thermal Conductivity: 1 – 12W/m·K
- Min. Line Width: ±10%
- Drill Hole Diameter: ≥ board thickness & ≥ 1.0mm
- Hole Tolerance: ±0.1mm
Heavy Copper PCB
- Layers: 1 – 8
- Thermal Conductivity: 1 – 12W/m·K
- Max. PCB Size: 1200 × 480 mm
- Min. PCB Size: 5 × 5mm
- Thickness: 0.5 – 5.0mm
- Finished Copper Thickness: 1 – 3oz
- Plated Through Hole Copper Thickness: 20 – 35μm

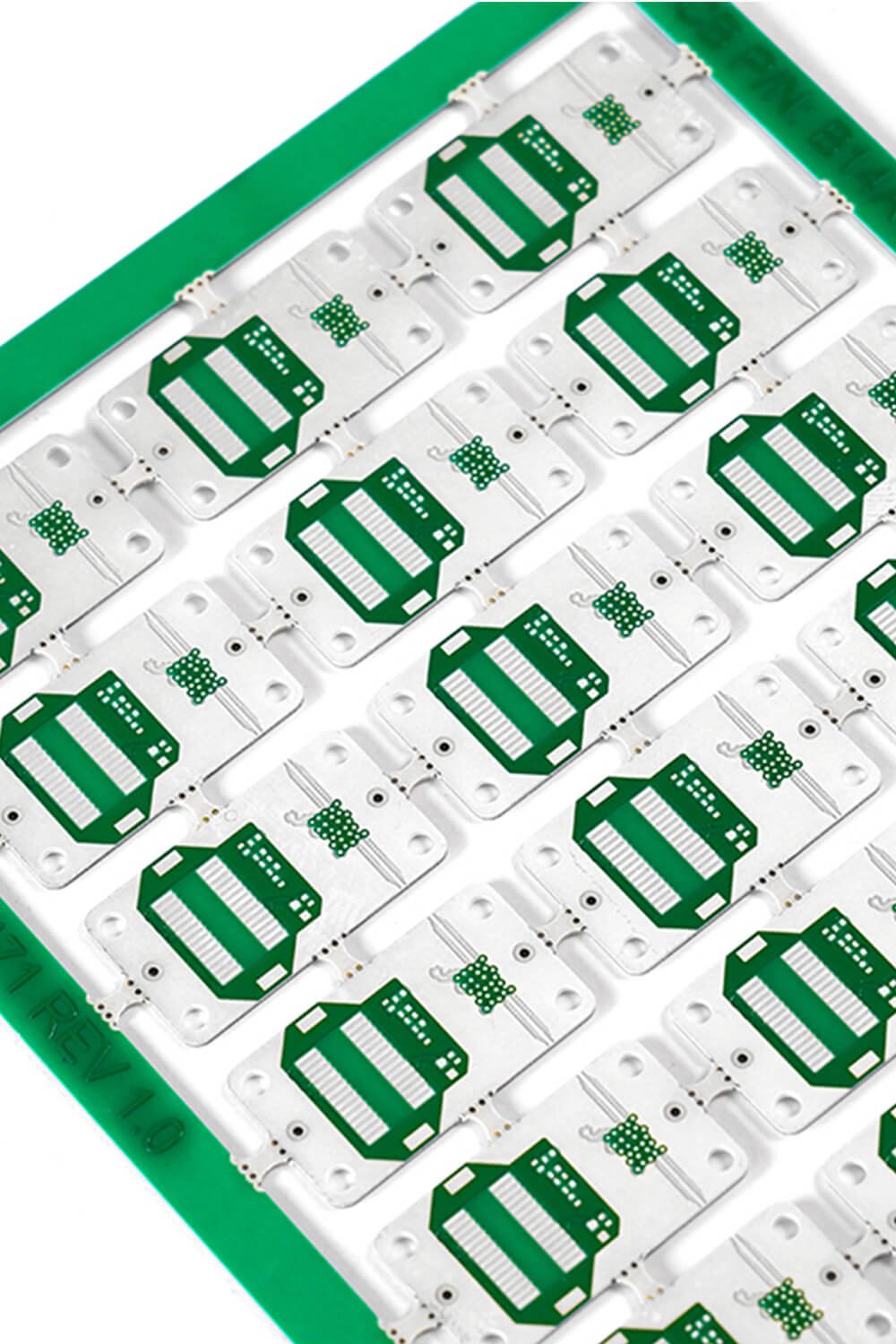

FR-4 PCB
- Layer Count: 1–8 layers
- Materials: FR-4 Tg 130–150°C
- Board Thickness: 0.8–2.4 mm
- Copper Weight: 1–2 oz (35–70 µm )
- Min Trace/Space: 100/100 µm
- Min Hole Size: 0.20 mm
Ceramic PCB
- Minimum Hole Diameter: 0.05mm
- Hole Taper Tolerance: ±30%
- Drilling Position Accuracy: 0.025mm
- Slot Tolerance (Length ≥ 2×Width): Length: ±0.05; Width: ±0.02mm
- Slot Tolerance: Length < 2×Widthmm; Length: ±0.025; Width: ±0.010mm
- Trace Alignment Accuracy: ±0.025mm; Interlayer Alignment: 0.025
- Min. Line Width/Spacing: 0.075/0.040mm
High Tg PCB
- Layer Count: 2–28
- Materials: High-Tg FR-4 (e.g., S1000-2M, IT-180A; Tg ≥170 °C )
- Glass Transition Temp (Tg): 170–180 °C
- Decomposition Temp (Td): ≥340 °C
- Board Thickness: 0.6–3.2 mm
- Copper Weight: 1–3 oz
- Min Trace/Space: 100/100 μm

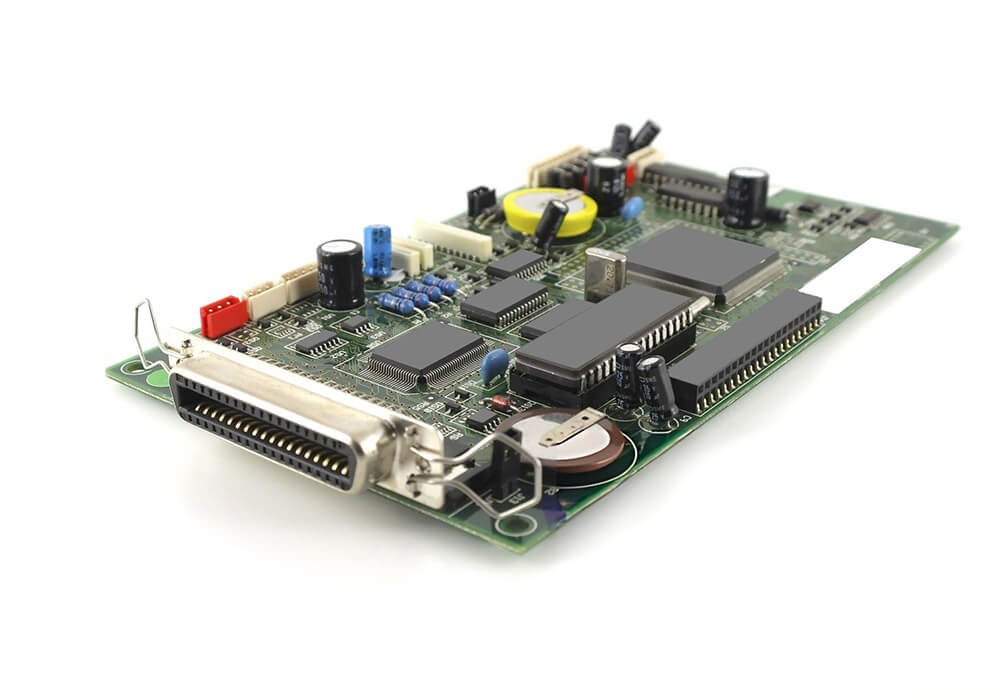

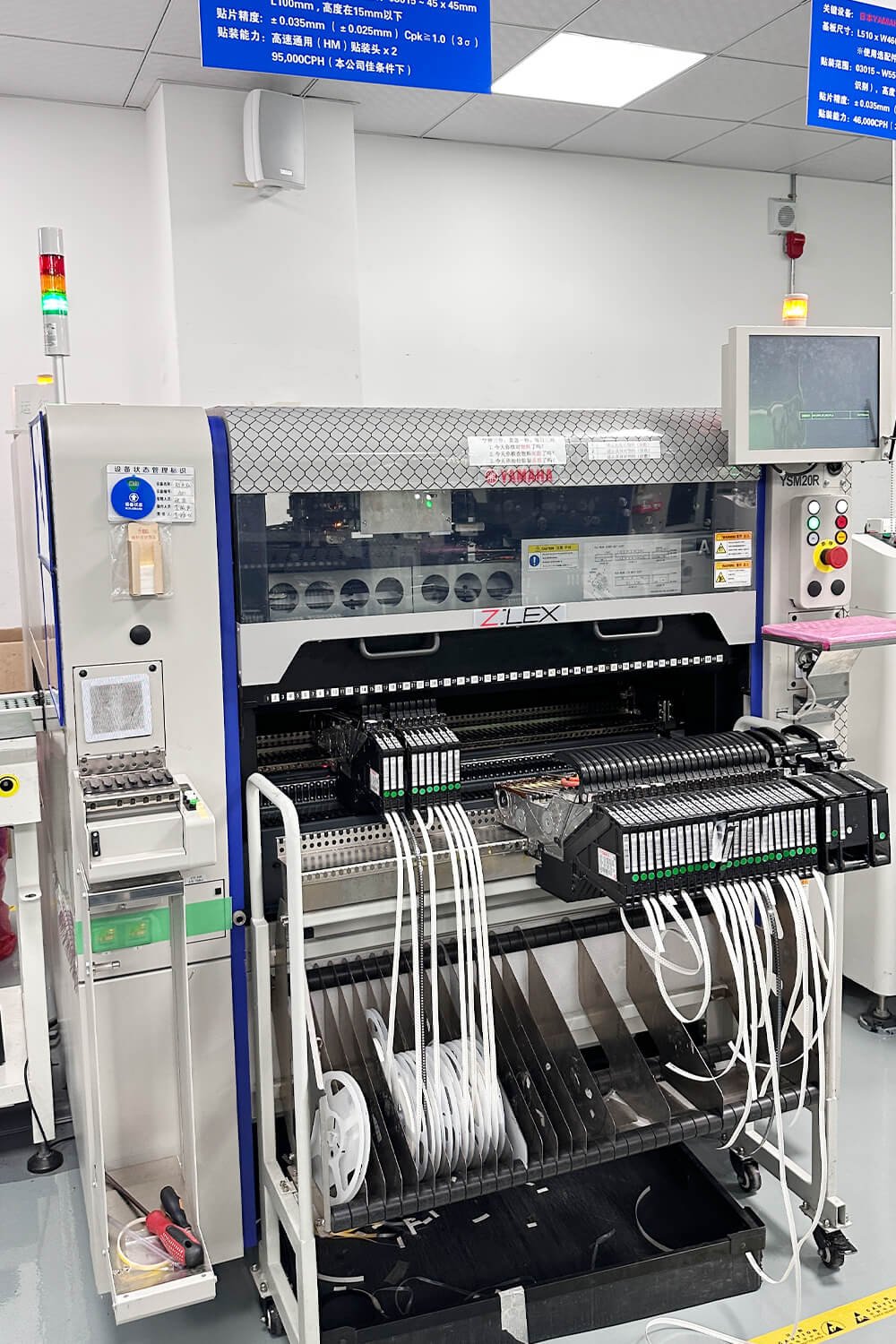

PCB Assembly Service.
We offer complete PCB assembly services, from component sourcing and automated assembly to final testing and product integration.
Why Choose Us?

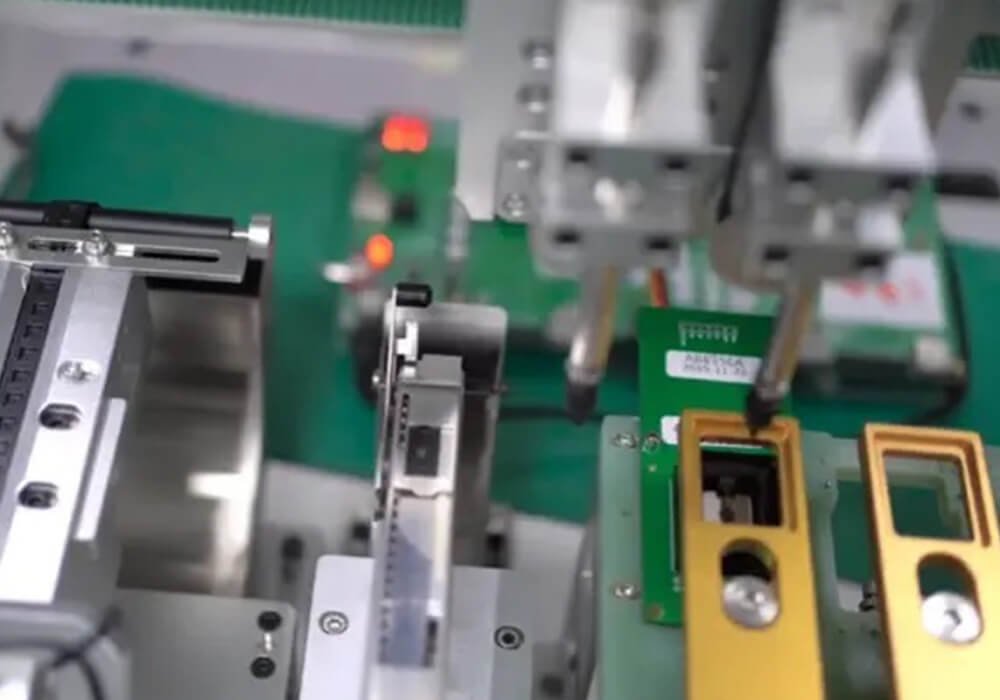

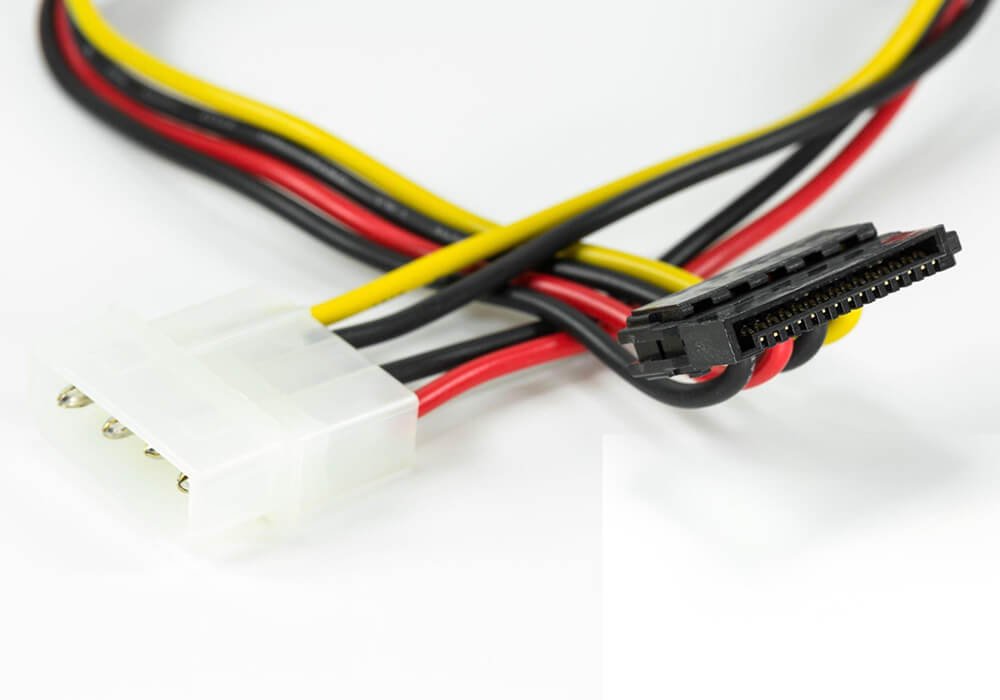

We are a PCB and PCBA manufacturer based in Shenzhen, China. From 2005, we offered PCB fabrication, component sourcing, SMT and through-hole assembly, inspection, testing, IC programming, cable assembly, and box-build services.
We support engineering prototypes, low-volume orders, and mass production. You work with us across board fabrication, purchasing, assembly, and quality control, reducing handoffs between multiple suppliers.
PCBSAIL VS. The Multi-vendor Model
|
Dimension |
Multi-Vendor |
PCBSAIL |
|
Contact Points |
3–5 (Fab / Trader / SMT / Harness / Box Build) |
1 Project Manager |
|
Quality Accountability |
Finger-Pointing, Broken Traceability |
Single Owner, Full MES Record |
|
Schedule Visibility |
Independent Queues, Total Lead Time Unknown |
In-House Scheduling Against Real Capacity |
|
Missing-Part Risk |
Found At Line Start |
Flagged At Quote, Alternates Pre-Approved |
|
Quote Transparency |
Lump Sum |
Line-Item Breakdown |
|
Traceability |
Fragmented Lot Data |
Serial-Level: Process, Material, Test |
Honest Positioning: We are not the cheapest option (that belongs to single/double-sided shops) and not the priciest Western brand. Our value is compressing a five-contract PCBA project into one contract, one window, one trace record.
How to Order from Us?
We provide quick and accurate quotes. Our team reviews your files to ensure the best manufacturing solution. From prototype to mass production, we make ordering easy. We help you save time, control cost, and get reliable results.

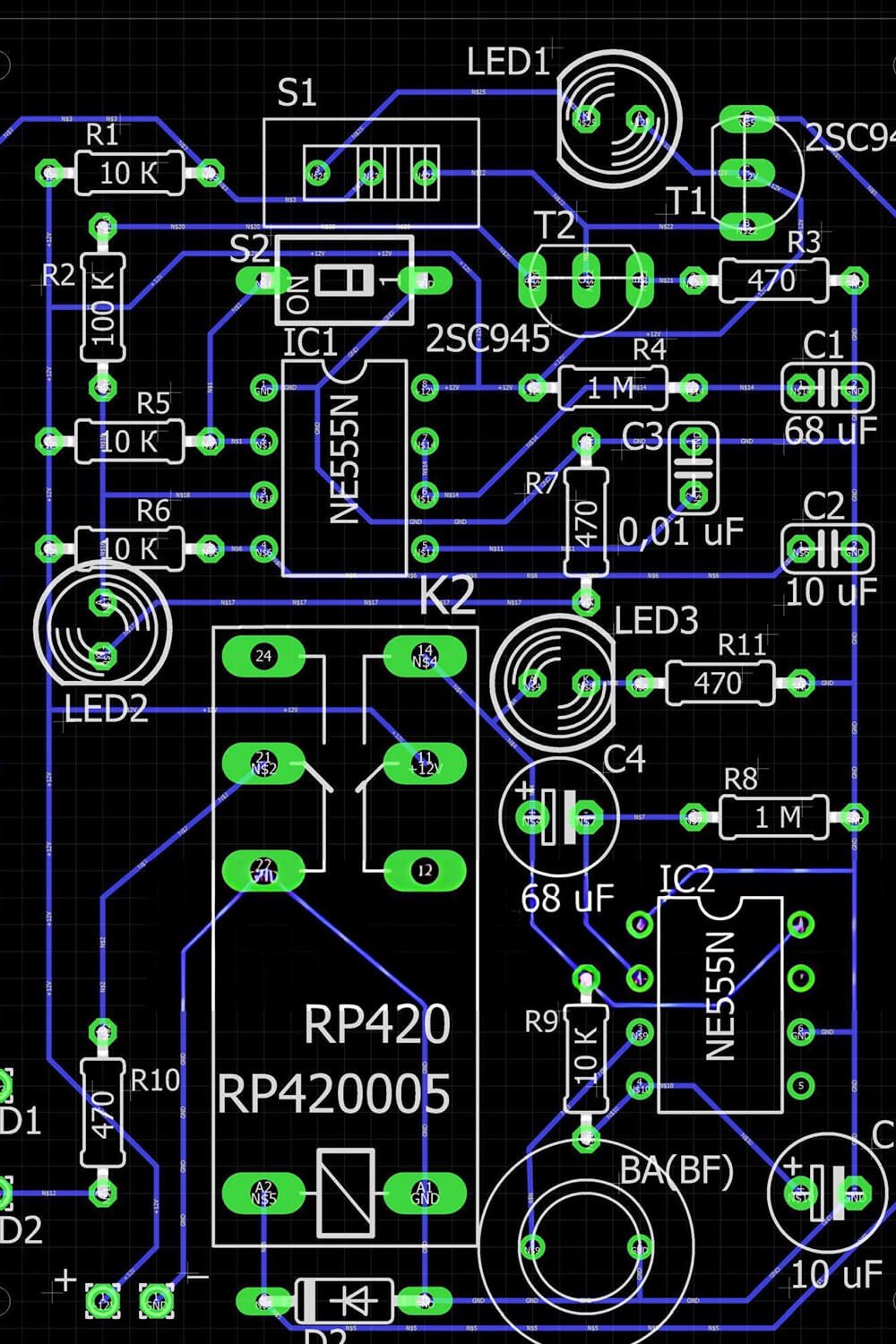

Upload your Gerber files, BOM (Bill of Materials), and Pick-and-Place / CPL files through our online system or send them directly to our sales team.
- PCB fabrication: Gerber files
- PCB assembly: Gerber + BOM + CPL
- Optional: schematic, test requirements, special instructions
Our engineering team performs a free Gerber and BOM review before quoting.
- DFM / DFA / DFT analysis
- Cost and manufacturability optimization suggestions
- Impedance control and stack-up confirmation
- Alternative component recommendations (if needed)
This step helps reduce risks, improve yield, and lower total cost.
You will receive a clear and competitive quotation covering:
- PCB fabrication cost
- PCB assembly and testing cost

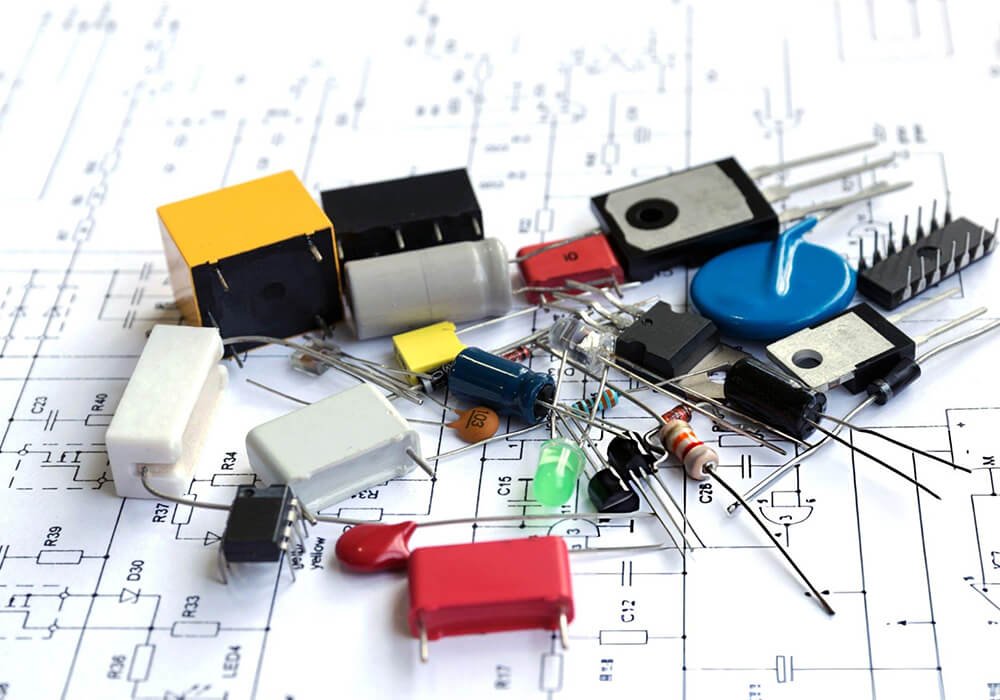

- Component sourcing (turnkey or partial turnkey)
- Lead time and delivery schedule
No hidden fees. Factory-direct pricing.
Once the quote is approved:
- Order is confirmed
- Materials are prepared and components sourced
- PCB fabrication and PCBA assembly begin
- Quality inspection and testing performed at each stage
Production progress is closely monitored to ensure on-time completion.

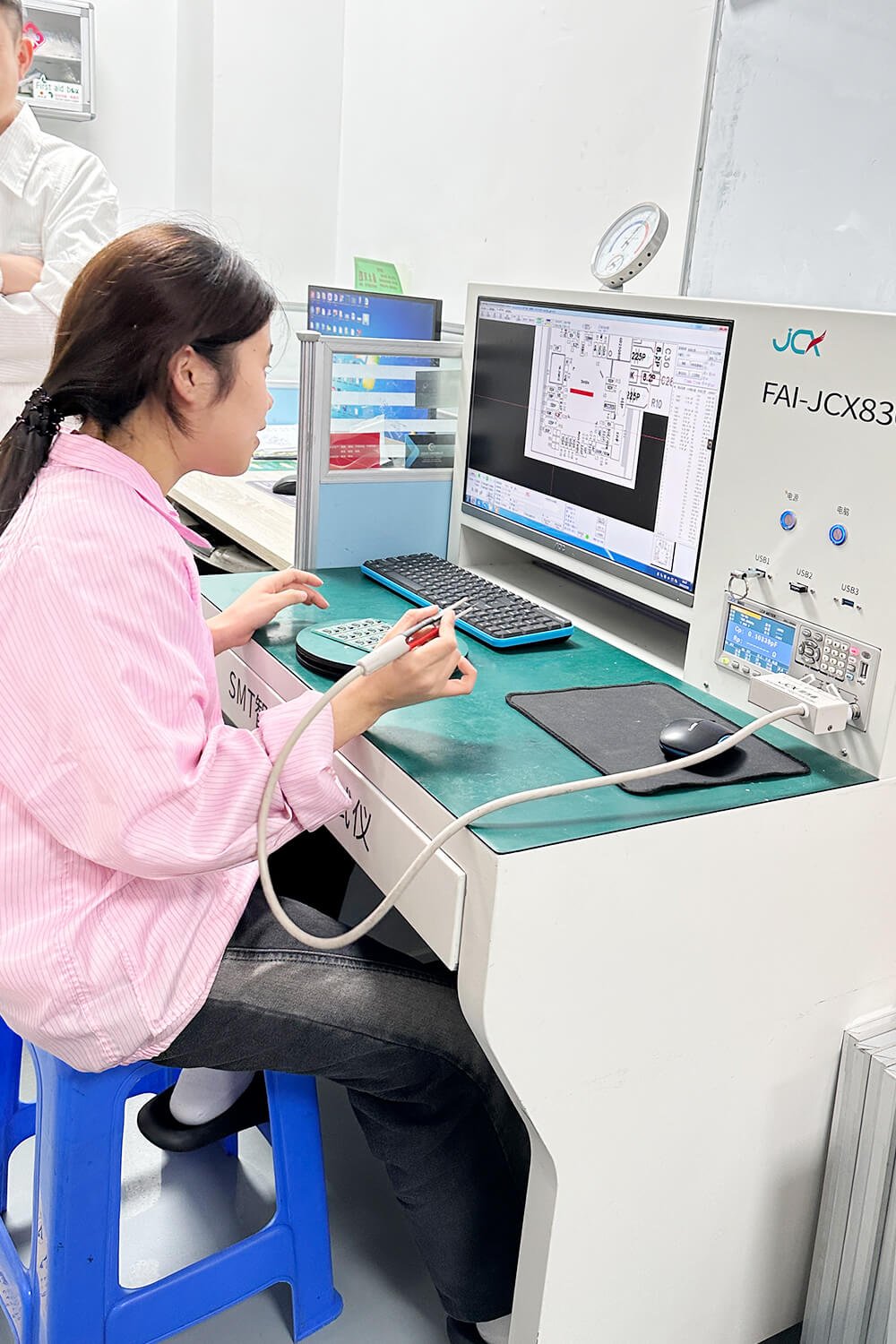

Before shipment, all products undergo strict quality inspection, including:
- AOI, X-ray, ICT, FCT, or electrical testing (as required)
- Final visual inspection and functional verification
Orders are shipped worldwide via DHL, UPS, FedEx, or TNT, with tracking information provided.
- Secure packaging for international shipping
- Engineering support for assembly or functional questions
- Fast response to feedback or follow-up requirements
- Long-term manufacturing support for repeat orders or scale-up
Customer Reviews.
Our PCB are exported worldwide, particularly to Europe and North America, and comply with IPC and UL standards. From prototype development to large-scale production, we can deliver stable quality and dependable service. What Our Customers Say?
Fast Quotation.
Our professional sales and engineering teams provide fast PCB quotes and technical support. Simply send us your Gerber files, BOM, and assembly drawings, and we will respond promptly with a competitive solution.
- Gushu Tangxi Second Industrial Zone, Shenzhen
- +86 755 2335 0814
- +86 135 1078 8094
- sales@pcbasail.com
PCB Application.
We provided high-reliability PCB and PCB Assembly services to a wide range of industries and applications.
Electronics
Our PCB are used in smartphones, tablets, wearables, and smart home devices, requiring compact designs, high reliability, and cost-efficient mass production.

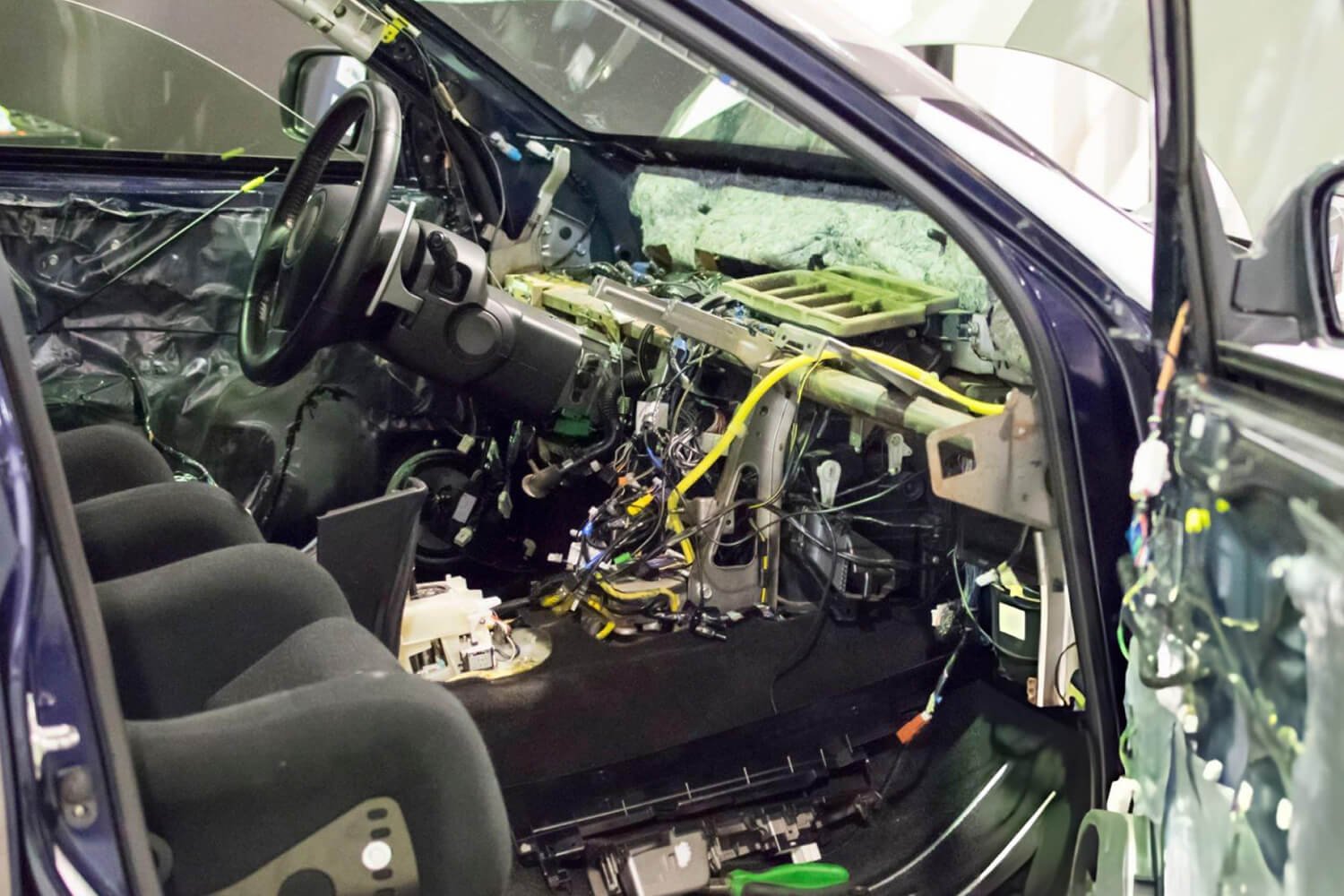

Automotive
Our Automotive PCBs support engine control, ADAS, infotainment, and electric vehicle systems, demanding high durability, thermal stability, and compliance with automotive standards.

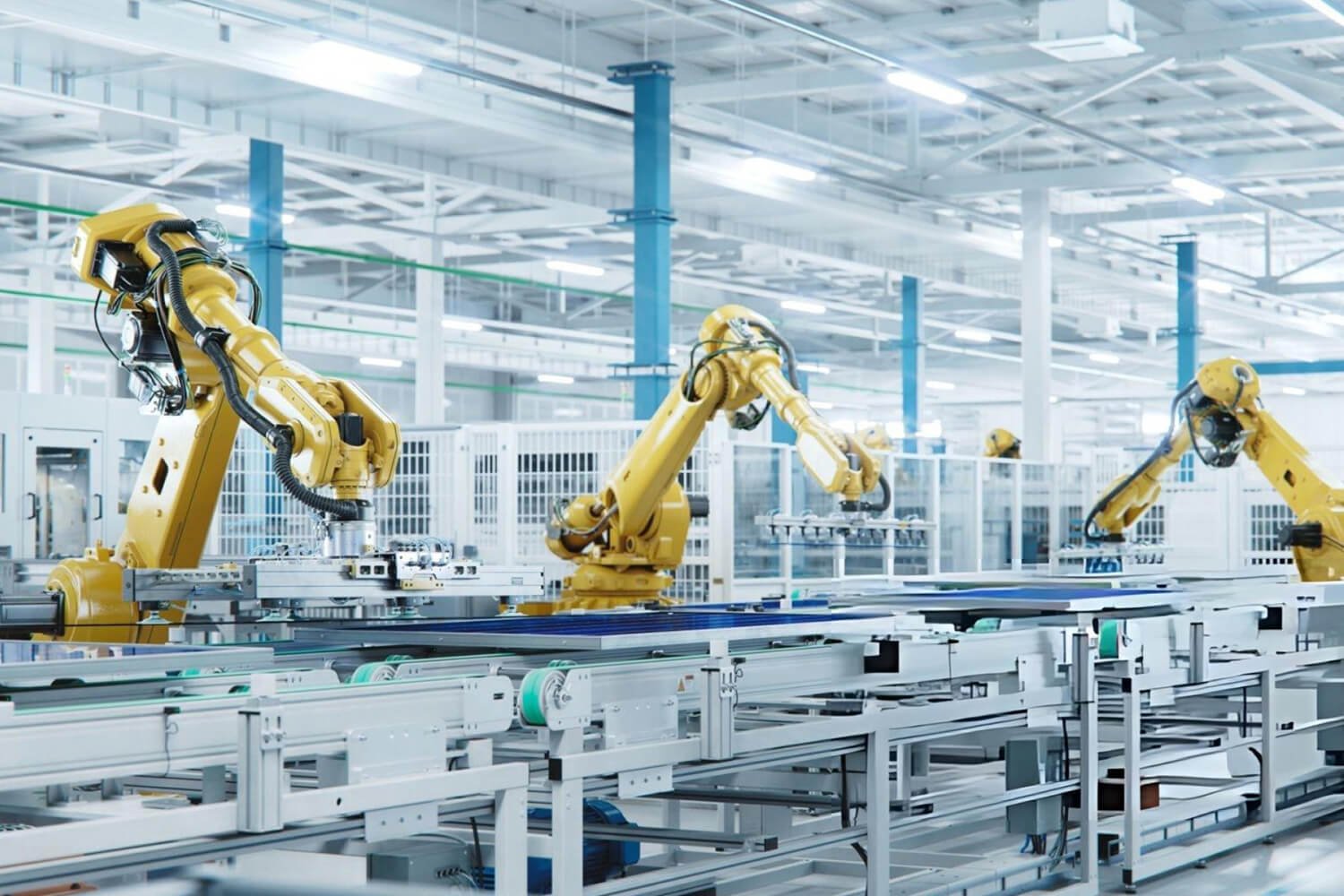

Industrial
Our PCB Used in PLCs, motor drives, robotics, and factory automation systems, industrial PCBs must withstand harsh environments and ensure long-term operational stability.

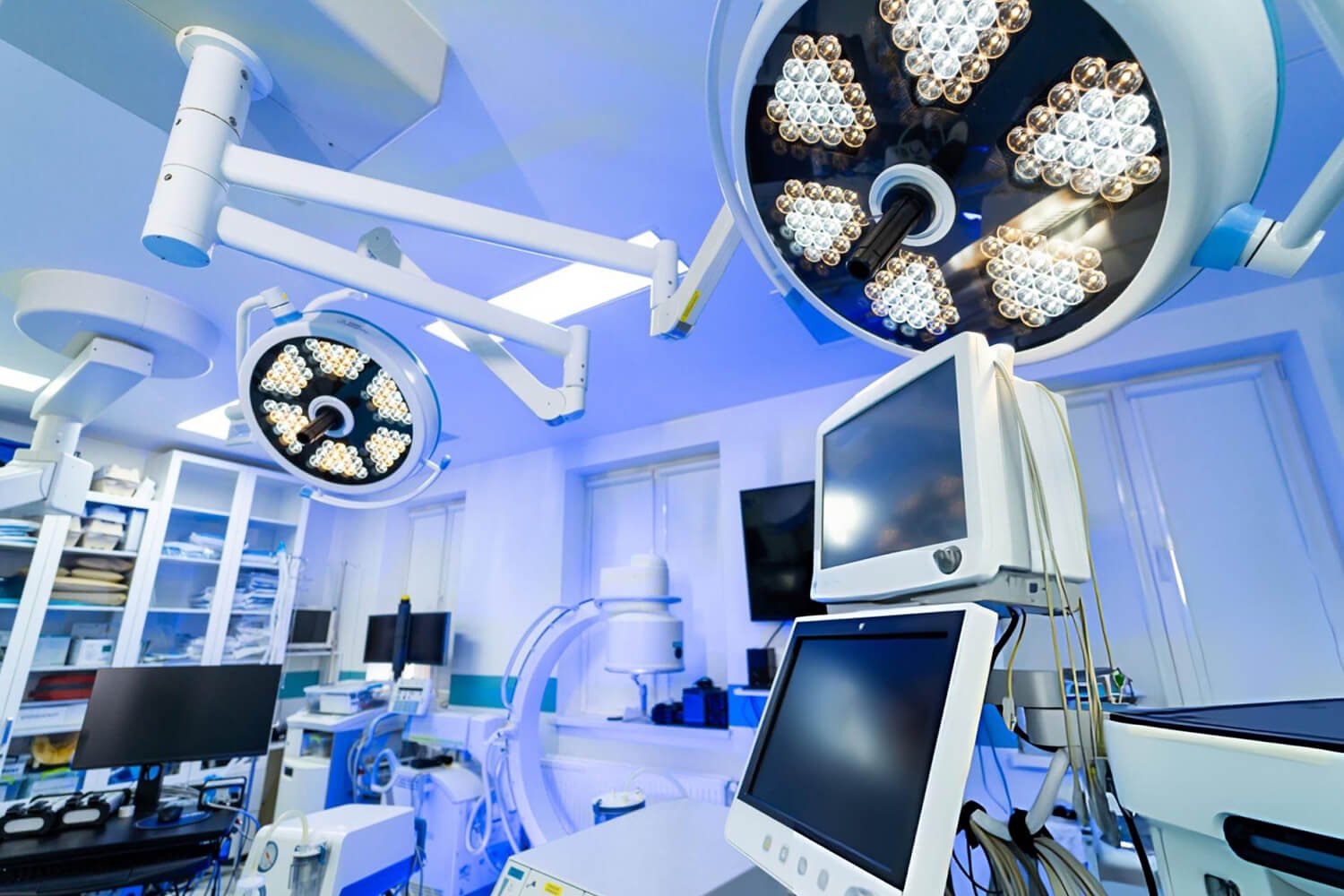

Medical Devices
Our Medical PCBs are critical in diagnostic equipment, patient monitoring systems, and portable medical electronics, where precision, reliability, and regulatory compliance are essential.

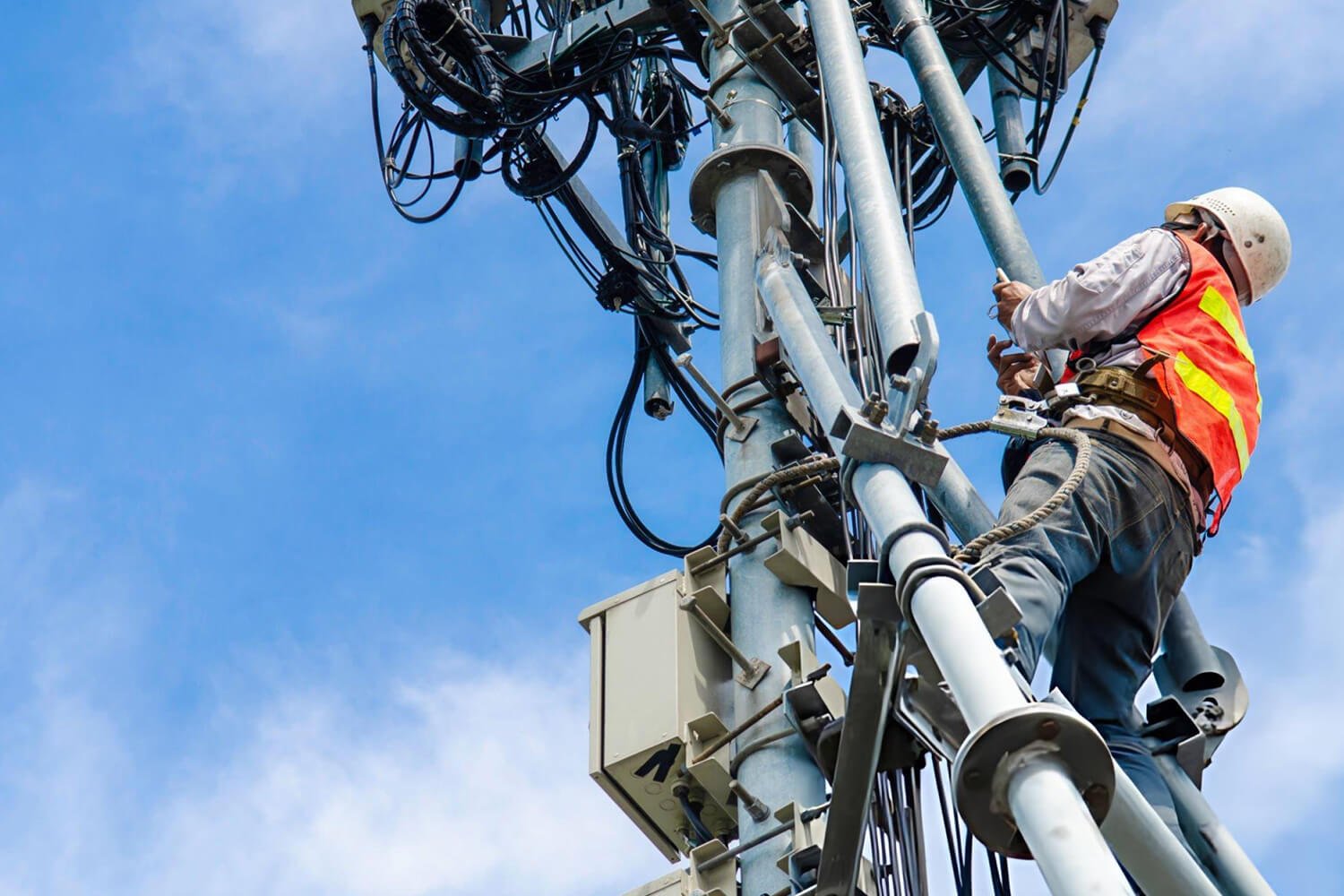

Telecommunication
Our PCBs are essential for 4G/5G base stations, RF modules, routers, and switches, requiring controlled impedance and high-frequency performance for signal integrity.

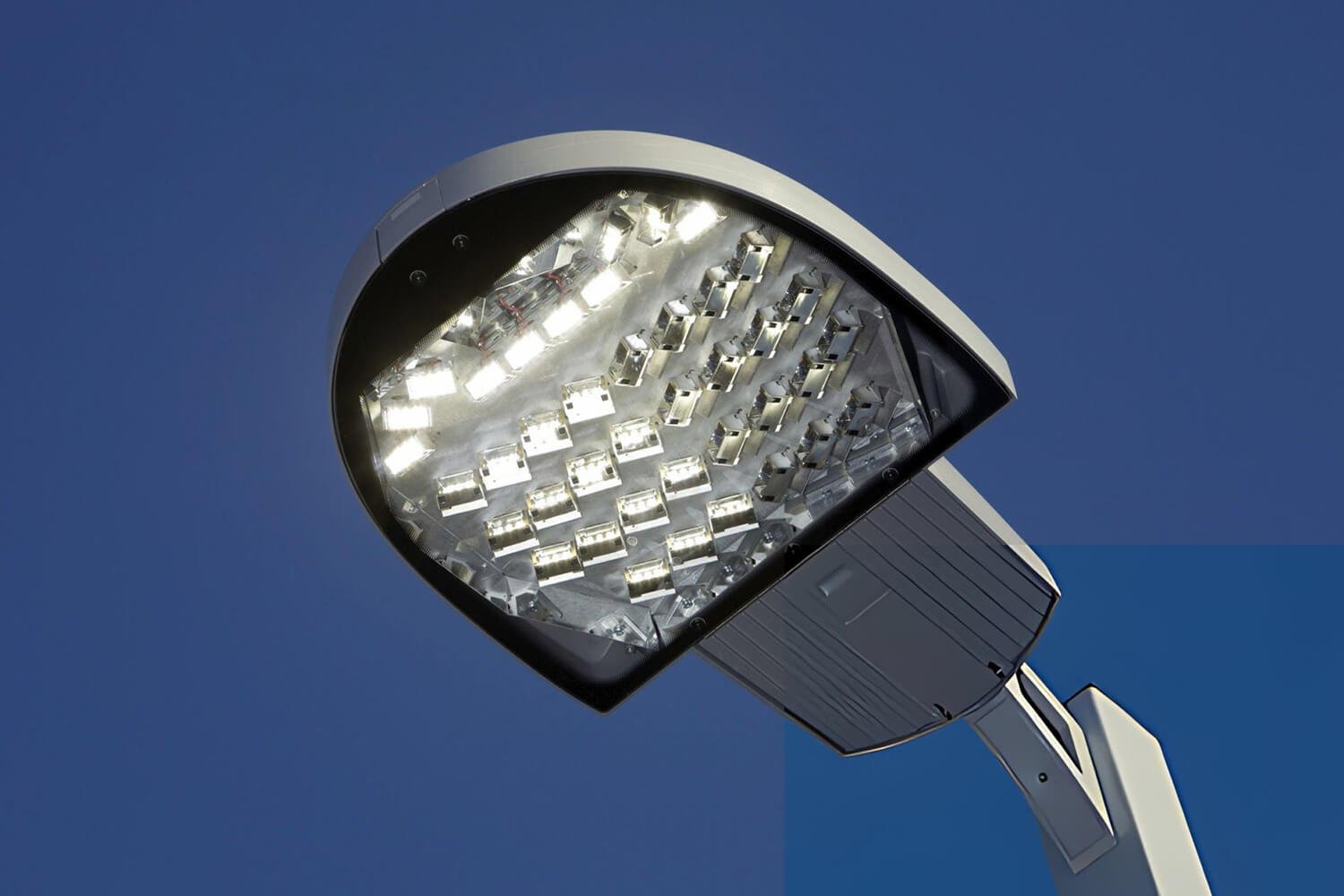

LED Lighting
Our LED PCBs, especially metal core boards, provide efficient heat dissipation for lighting systems, displays, and automotive lighting applications.
Power Electronics
Our PCB Can be used in power supplies, inverters, chargers, and energy management systems, PCBs must handle high currents, voltages, and thermal loads.
Security
Our PCBs are used in cameras, access control systems, and monitoring equipment, supporting stable performance and continuous operation.

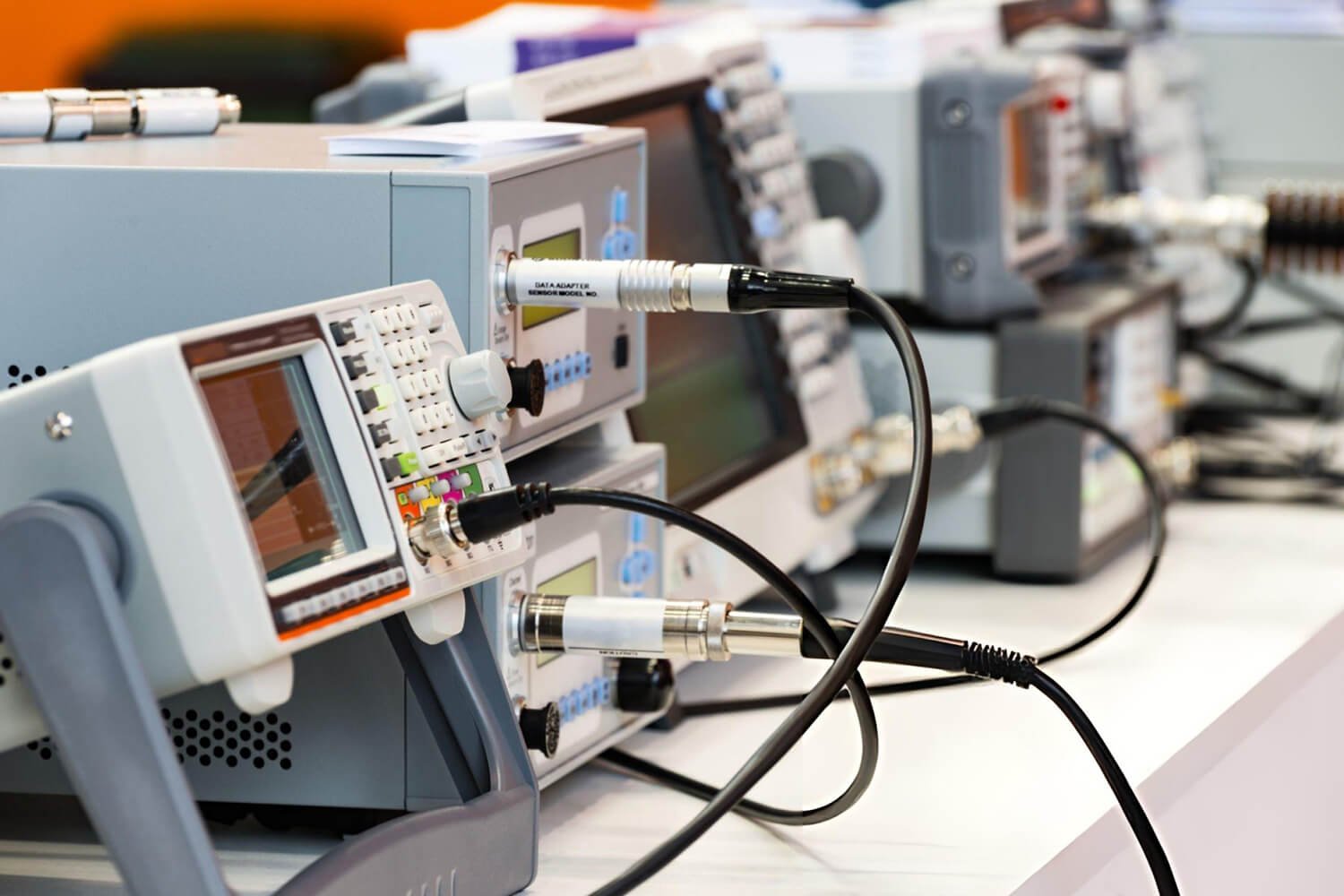

Instrumentation
Our Precision PCBs are used in testing and measurement equipment, ensuring signal accuracy, repeatability, and long-term reliability.
AI Toys
Our PCBs used in AI toys support intelligent functions such as voice recognition, motion sensing, image processing, and wireless connectivity.

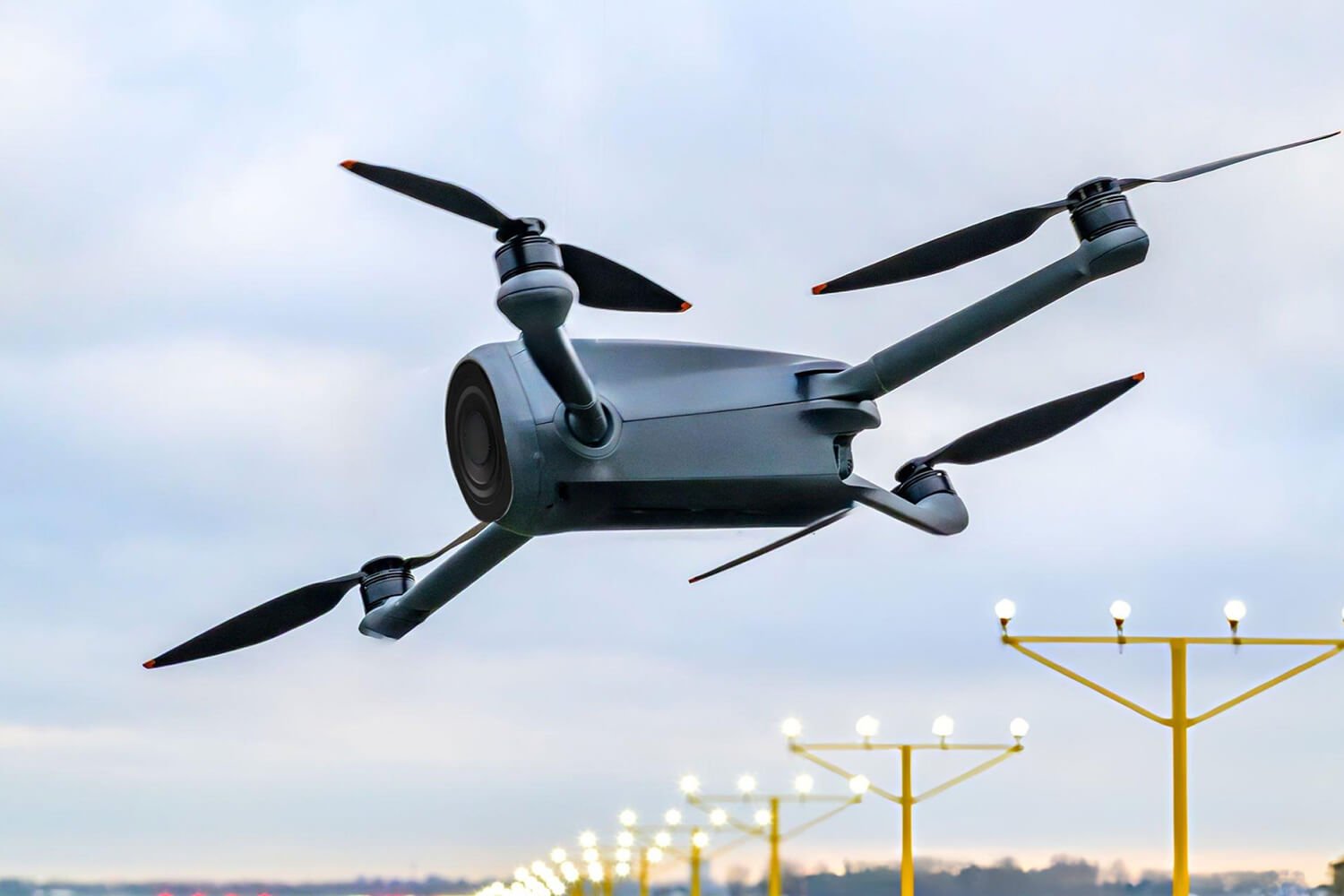

Drone
Our PCBs in drones are critical for flight control systems, power management, navigation, imaging, and wireless communication.
